Leo Friedman Capstone

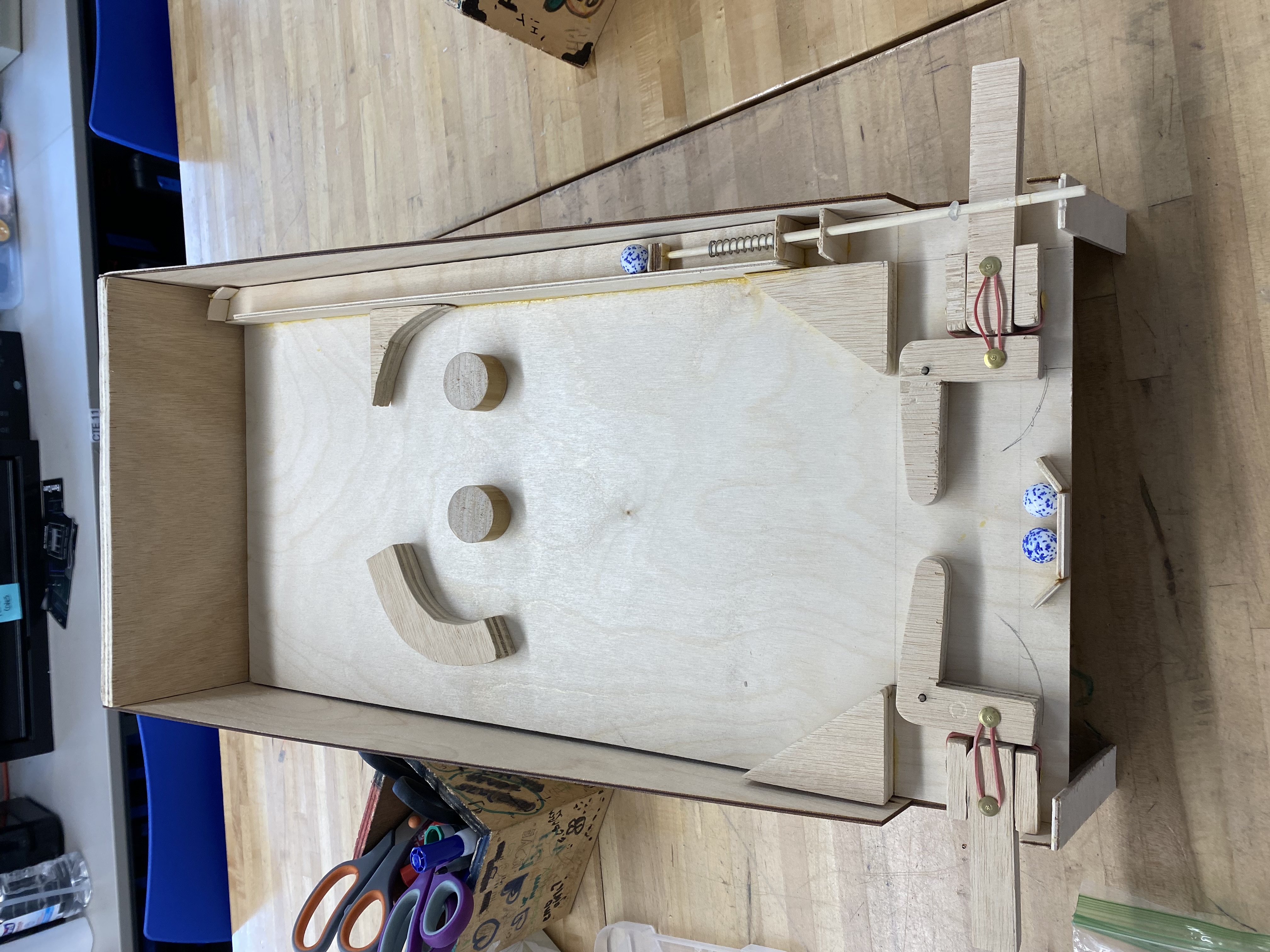

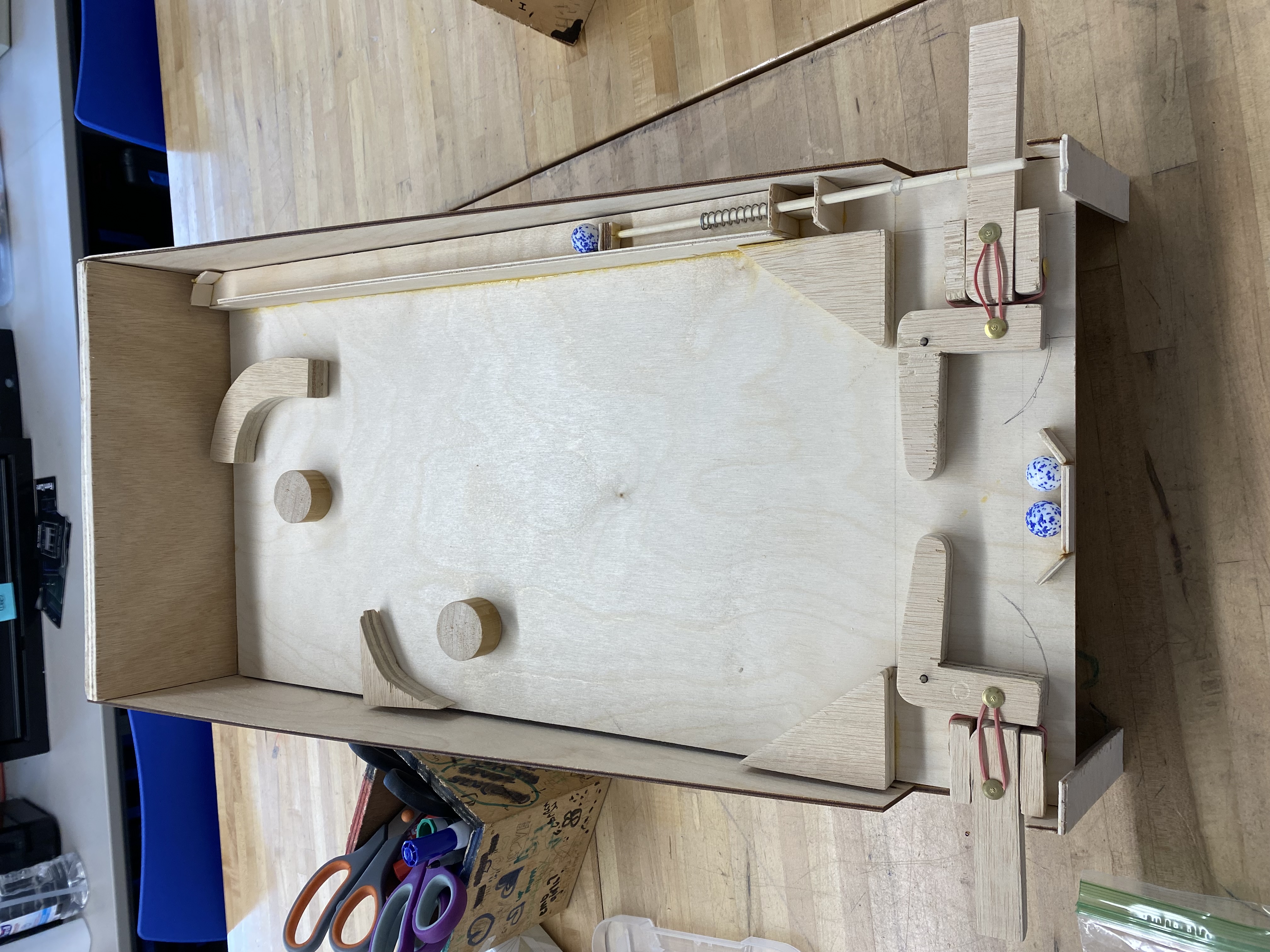

For my capstone, I made a modular pinball machine that allows the user to move the obstacles around to create any kind of playing board they want. The point was to do something innovative with the classic pinball design and to add my mark to the pinball world. The first thing I did was I first constructed the flippers using a design that I saw on YouTube and have used before in cardboard pinball designs. I made the frame out of thin 1/8th inch baltic birch and plywood so that it is sturdy yet still light and portable. I also wanted the board to be removable so that in case anything breaks or goes wrong it is easier to fix. I created a ball chute for putting the ball in play using a chopstick, a spring, and some thin baltic birch wood. The positioning of the magnets was the hardest part of my capstone. I went through many different magnet patterns with different spacing for all of them before I came up with the one that is actually in use. If you look at the back of the board, you can still see where I had plans to install the magnets on the other designs. After I super glued the magnets in place, I still had to make the obstacles. I started with some basic ones like some basic curves and some circles, although I would still like to expand on my capstone by making some more complex obstacles like ramps, rails, and some moving parts like a multiball function or something like that.

Annotated Bibliography: https://docs.google.com/document/d/1TewAN7A2YcahWalgnl-c5SuRyTGK8eBf0vOmGcggvSs/edit?usp=sharing

IMG-3221
IMG-3221
IMG-3224
IMG-3224
IMG-3225
IMG-3225
IMG-3227
IMG-3227
